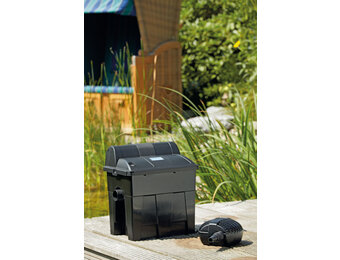

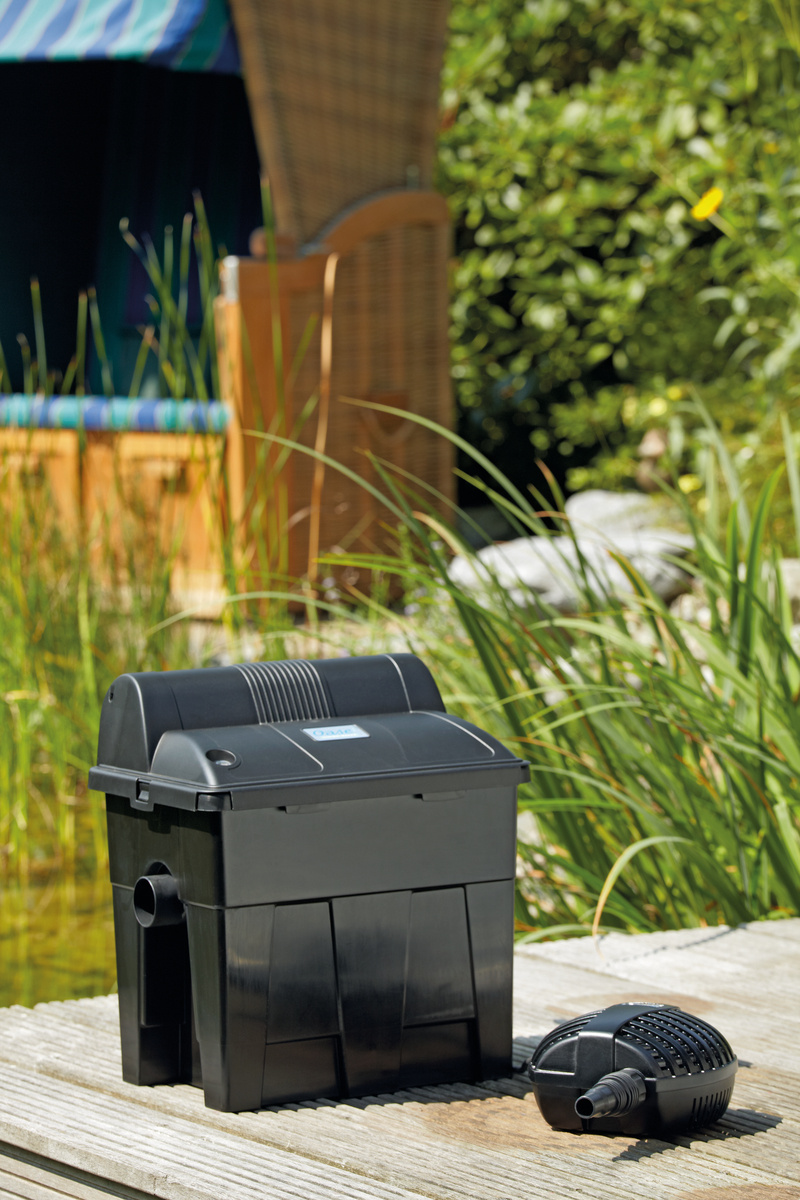

Reliable and flexible entry-level flow filter
Easy to maintain thanks to cleaning handles and bottom drain
Contamination level and temperature indicator for convenient filter control
Feature
Incl. OASE clear water guarantee
Oxygen enrichment through special water guidance
Cleaning handles for easy maintenance
Incl. indicators for the degree of contamination and water temperature
Floor drain for easy removal of coarse dirt particles
Easy to conceal, as the filter housing can be buried ⅓ deep
Suitable for ponds up to 7.0 m3
Included in delivery: 3 m ¾" (19 mm) hose and OASE filter pump 2500: 40 W; 2500 l/h Qmax; 2.2 m Hmax
Combination of mechanical-biological cleaning and effective UVC technology
Technical data
Filter dimensions (L x W x H) mm 280 x 380 x 410
Net weight kg 6.00
Nominal voltage 230 V / 50 Hz
UVC power consumption W 12
UVC power cable length m 3.00
Warranty Years 2
UVC power W 9
Total number of filter foams ST 3
Number of filter foams blue ST 2
Number of filter foams red ST 1
Temperature display Yes
Inlet connections mm 19 / 25 / 32 / 38
Inlet connections ¾", 1", 1 ¼", 1 ½"
Outlet connections DN 50
Dirt outlet connections mm 38
Dirt outlet connections 1 ½"
Corresponding filter/stream pump Filter pump 2500
Pump dimensions (L x W x H) mm 190 x 175 x 110
Pump power consumption W 40
Max. litres per hour l/h 2750
Pump power cable length m 10.00
Suitable for ponds up to max. m3 7.0
Suitable for ponds with fish stock m3 3.5
Suitable for ponds with koi stock m3 1.7
Spare parts
Pos. Product SKU Quantity
1 Lid UVC BioSmart 29404 1
2 Thermometer neutral 29594 1
3 Inner lid BioSmart 7000/8000 34897 1
4 Replacement foam red BioSmart 35791 1
5 Replacement sponge blue BioSmart 35792 2
6 Filter foam holder DLF OEM03 34899 3
7 Housing BioSmart 5000-7000 with UVC 25727 1
8 Replacement connection set BioSmart 5-16000 m.UVC 35204 1
9 BG UVC 9 W cpl. 10767 1
10 BG UVC 7 / 9 / 11 W 2011 15665 1
11 Replacement lamp UVC 9 W 54984 1
12 Quartz tube D33 x 200 with edge 13312 1
13 Replacement clamp screws set UVC 7/ 9/ 11 W 15535 1
14 UVC water housing DLF OEM03 34900 1
B Replacement pump FP 2500 13745 1
Downloads
Pump operating manual Download
Filter operating manual Download
